Pseudo MIDI Messages from the Arduino to Pd

• We can also send MIDI-like messsages from the Arduino to Pd by slightly modifying the approaches above.

• The Arduino sketch uses a function that can output MIDI-like messages with one to three space-separated values.

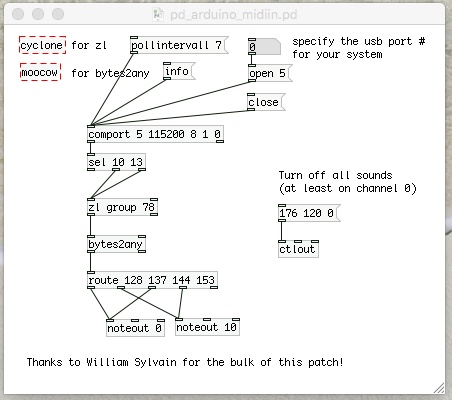

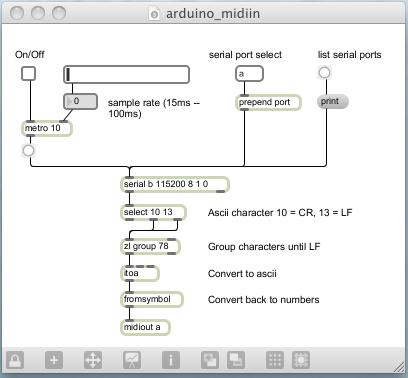

• The Pd patch passes the messages directly to a [midiout] object, which if connected to a sound synthesizer will produce corresponding MIDI events.

• If you need to manipulate the incoming message values, then process the unpacked values before sending them to a MIDI object.

• Note that it is common when stopping the serial stream in the Pd patch to end up with MIDI notes that are left hanging (never turned off). A ControlChange message number of 120 and value 0 will mute all sounds.

  #define MIDI_ON 144
  #define MIDI_OFF 128
  #define MIDI_CHANNEL 0

  int status = 0;

  // midi2Pd function declaration with optional arguments
  void midi2Pd( int cmd, int data1 = -1, int data2 = -1 );

  void setup()
  {
    Serial.begin( 115200 );       // set the baud rate
  }

  void loop()
  {
    status = MIDI_ON + MIDI_CHANNEL;
    midi2Pd( status, 60, 90 );   // send a MIDI ``note on'' message

    delay( 500 );                 // delay 500 milliseconds

    status = MIDI_OFF + MIDI_CHANNEL;
    midi2Pd( status, 60, 0 );   // send a MIDI ``note off'' message

    delay( 500 );                 // delay 500 milliseconds
  }

  // Send a MIDI message of 1 to 3 ``bytes'' (without checking values)
  void midi2Pd( int cmd, int data1, int data2 )
  {
    Serial.print( cmd );
    if ( data1 >= 0 ) {
      Serial.print(' ');
      Serial.print( data1 );
    }
    if ( data2 >= 0 ) {
      Serial.print(' ');
      Serial.print( data2 );
    }
    Serial.println();
  }




• In another example with MIDI, we can control the pitch of the MIDI message using a sensor.

• Note that we need to perform our internal scaling with a float variable to avoid exceeding the limits of the int data type.

  #define MIDI_ON 144
  #define MIDI_OFF 128
  #define MIDI_PROGRAM 192
  #define MIDI_CHANNEL 0

  int fsrPin = 1;           // FSR pin
  int status = 0;
  int fsr = 0;
  float temp = 0.0;

  // midi2Pd function declaration with optional arguments
  void midi2Pd( int cmd, int data1 = -1, int data2 = -1 );

  void setup()
  {
    Serial.begin( 115200 );  // set the MIDI baud rate
  }

  void loop()
  {
    fsr = analogRead( fsrPin );    // read the input pin
    temp = fsr;
    temp *= 40;
    temp /= 1024;
    temp += 50;                     // scale the value between 50 - 90
    fsr = temp;

    //status = MIDI_PROGRAM + MIDI_CHANNEL;
    //midi2Pd( status, random(64) );

    status = MIDI_ON + MIDI_CHANNEL;
    midi2Pd( status, fsr, 90 );   // send a MIDI ``note on'' message

    delay(500);                    // delay 500 milliseconds

    status = MIDI_OFF + MIDI_CHANNEL;
    midi2Pd( status, fsr, 0 );   // send a MIDI ``note off'' message

    delay(500);                    // delay 500 milliseconds
  }

  // Send a MIDI message of 1 to 3 ``bytes'' (without checking values)
  void midi2Pd( int cmd, int data1, int data2 )
  {
    Serial.print( cmd );
    if ( data1 >= 0 ) {
      Serial.print(' ');
      Serial.print( data1 );
    }
    if ( data2 >= 0 ) {
      Serial.print(' ');
      Serial.print( data2 );
    }
    Serial.println();
  }


• We can also use the Arduino for sequencing:

  #define MIDI_ON 144
  #define MIDI_OFF 128
  #define MIDI_PROGRAM 192
  #define MIDI_CHANNEL 0

  #define DRUM_CHANNEL 9
  #define BASS_CHANNEL 0

  #define KICK  35    // kick drum note number
  #define HAT 42      // closed hi-hat note number
  #define BASS 39     // bass program number

  int status = 0;
  int counter = 0;
  char bassNote = 28;
  char drumNote = HAT;

  // midi2Pd function declaration with optional arguments
  void midi2Pd( int cmd, int data1 = -1, int data2 = -1 );

  void setup()
  {
    Serial.begin( 115200 );  // set the MIDI baud rate
    Serial.print( MIDI_PROGRAM + BASS_CHANNEL );  // Do MIDI program change for bass voice
    Serial.print( ' ' );
    Serial.println( BASS );
  }

  void loop()
  {
    if ( counter == 0 ) {
      midi2Pd( MIDI_OFF + DRUM_CHANNEL, drumNote, 0 );
      drumNote = KICK;
      midi2Pd( MIDI_ON + DRUM_CHANNEL, drumNote, 64 );
      midi2Pd( MIDI_OFF + BASS_CHANNEL, bassNote, 0 );
      bassNote = 28;
      midi2Pd( MIDI_ON + BASS_CHANNEL, bassNote, 64 );
    }
    else if ( counter == 2 ) {
      midi2Pd( MIDI_OFF + DRUM_CHANNEL, drumNote, 0 );
      drumNote = HAT;
      midi2Pd( MIDI_ON + DRUM_CHANNEL, drumNote, 64 );
    }
    else if ( counter == 4 ) {
      midi2Pd( MIDI_OFF + DRUM_CHANNEL, drumNote, 0 );
      drumNote = KICK;
      midi2Pd( MIDI_ON + DRUM_CHANNEL, drumNote, 64 );
    }
    else if ( counter == 6 ) {
      midi2Pd( MIDI_OFF + DRUM_CHANNEL, drumNote, 0 );
      drumNote = HAT;
      midi2Pd( MIDI_ON + DRUM_CHANNEL, drumNote, 64 );
    }
    else if ( counter == 8 ) {
      midi2Pd( MIDI_OFF + DRUM_CHANNEL, drumNote, 0 );
      drumNote = KICK;
      midi2Pd( MIDI_ON + DRUM_CHANNEL, drumNote, 64 );
    }
    else if ( counter == 10 ) {
      midi2Pd( MIDI_OFF + DRUM_CHANNEL, drumNote, 0 );
      drumNote = HAT;
      midi2Pd( MIDI_ON + DRUM_CHANNEL, drumNote, 64 );
    }
    else if ( counter == 12 ) {
      midi2Pd( MIDI_OFF + DRUM_CHANNEL, drumNote, 0 );
      drumNote = KICK;
      midi2Pd( MIDI_ON + DRUM_CHANNEL, drumNote, 64 );
    }
    else if ( counter == 14 ) {
      midi2Pd( MIDI_OFF + DRUM_CHANNEL, drumNote, 0 );
      drumNote = HAT;
      midi2Pd( MIDI_ON + DRUM_CHANNEL, drumNote, 64 );
    }

    counter++;
    if ( counter > 15 ) counter = 0;

    delay( 100 );                    // delay 100 milliseconds
  }

  // Send a MIDI message of 1 to 3 ``bytes'' (without checking values)
  void midi2Pd( int cmd, int data1, int data2 )
  {
    Serial.print( cmd );
    if ( data1 >= 0 ) {
      Serial.print(' ');
      Serial.print( data1 );
    }
    if ( data2 >= 0 ) {
      Serial.print(' ');
      Serial.print( data2 );
    }
    Serial.println();
  }
